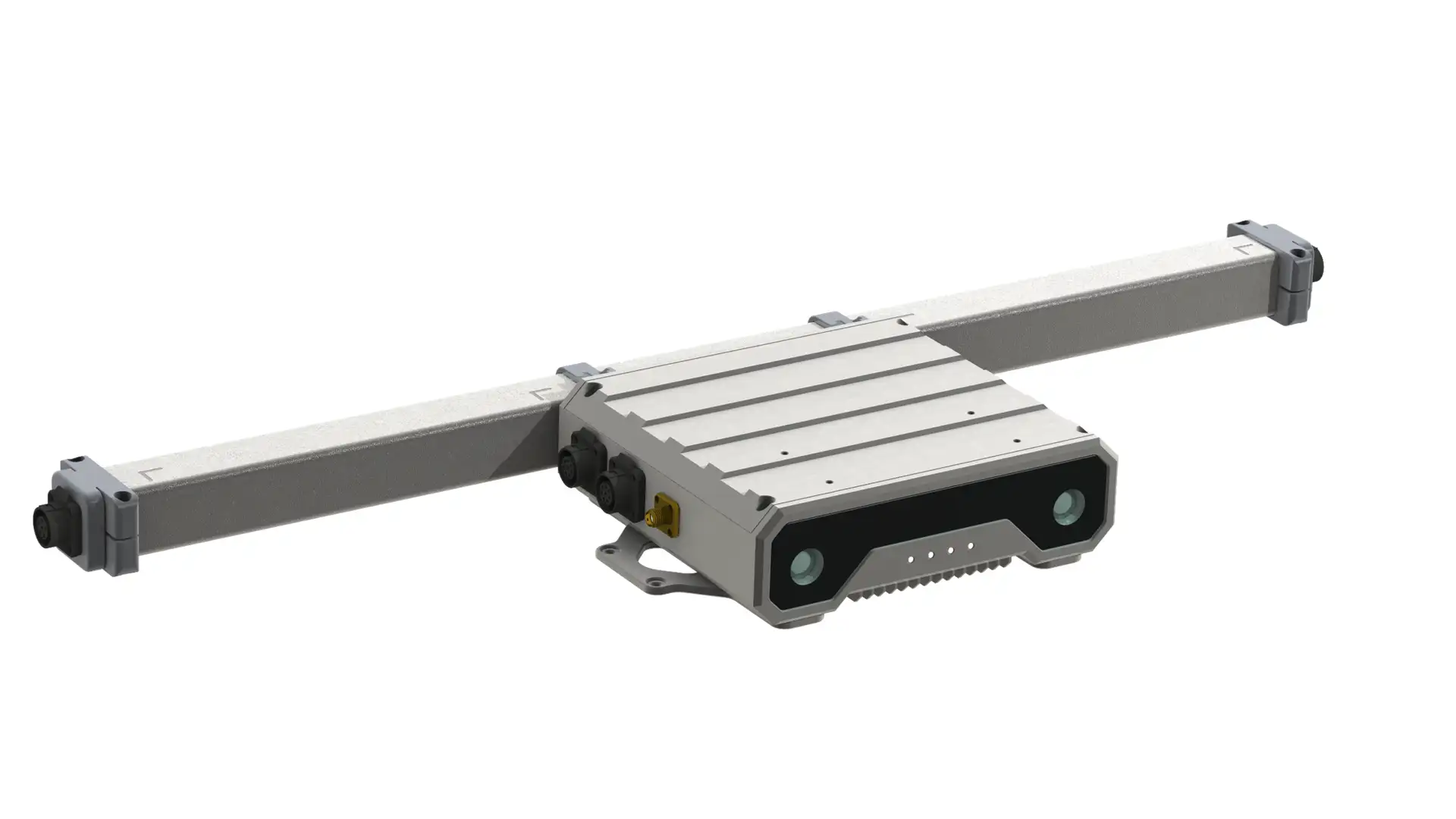

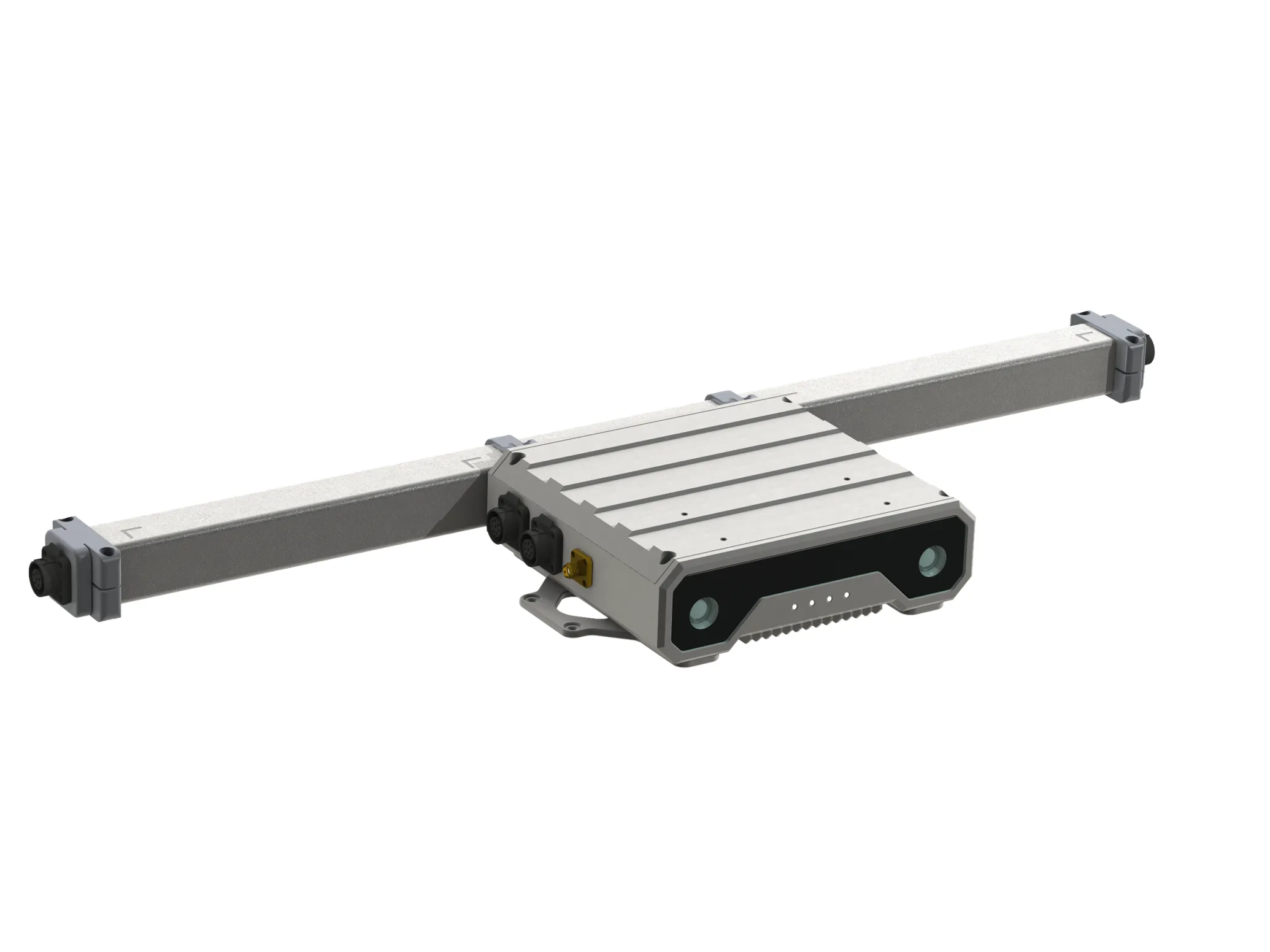

MagLoc
Infrastructure-free Absolute Positioning Technology
MagLoc is a revolutionary technology for localisation of mobile systems. With its numerous advantages, MagLoc rivals SLAM technology. This product delivers robust, accurate, and cost-effective positioning in environments where GPS signals are unavailable or unreliable. Designed for use without the need for additional positioning infrastructure, our solution offers advanced multi-sensor calibration and fusion capabilities, ensuring accurate positioning and robust performance in all-weather conditions in various application scenarios.
Advantages
Fast Ambient Magnetic Field (AMF) Mapping
- Simple data collection for AMR operation area
- One key creation of Ambient Magnetic Field Map and easy maintenance
Accurate Real-time Absolute Positioning
- Coordinate measurement with orientation
- Quick start and sampling rate of 100HZ
- Accurate absolute positioning in any location and for long duration
- No accumulation errors or drifts
Day/Night and All-weather Robust Operation
- Robust in all-day & all-weather conditions
- Highly effective for built environments
- Insensitive to dynamic ferromagnetic interferences
Modularized Components
- Easy mounting for most AMR structures
- Options for localization and/or mapping
- Free-up space for AMR loading design
Specifications
| Size | Core Unit | 145mm(L) x 130mm (W) x 45mm(H) |
|---|---|---|
| Magnetometer Bar | 500mm(L) x 25mm (W) x 25mm(H) | |
| Total Weight | 950g (1250g with Magnetometer Bar) | |
| Positioning Accuracy | Up to 10-15cm | |
| Positioning Accuracy with Assistive Sensors | Up to 5cm | |
| Positioning Output Frequency | 100 Hz | |
| Input Power | 12 to 36V, (peak power ~35W) | |
| Operating Temperature | -20 to +50℃ | |
